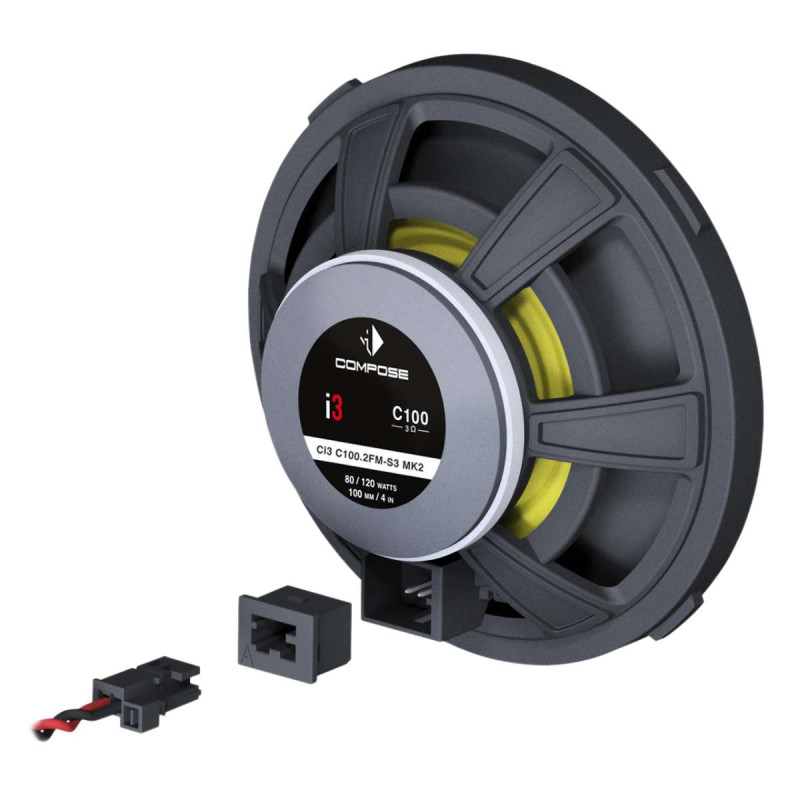

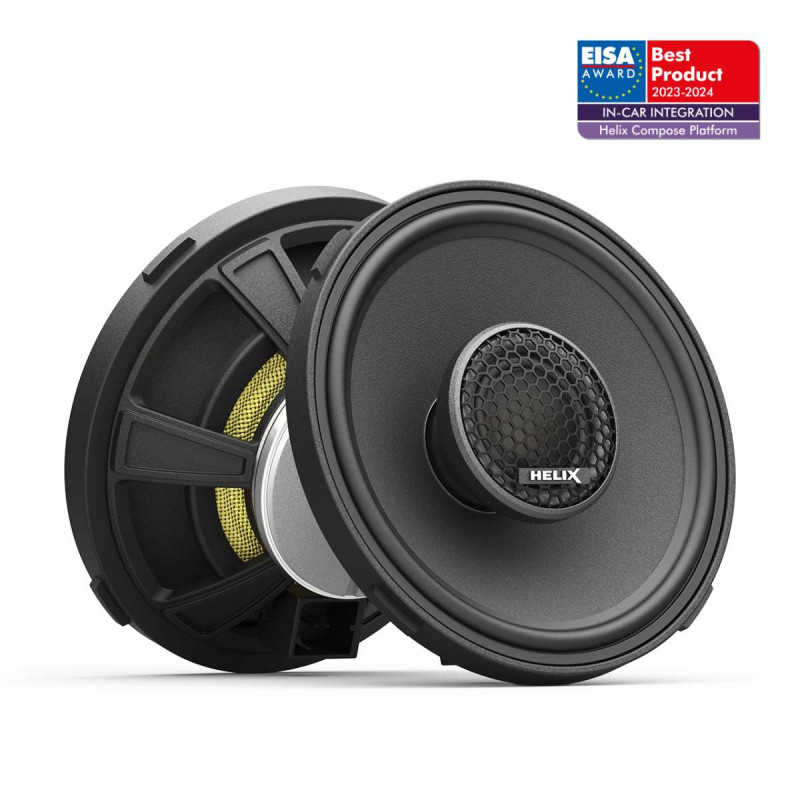

Speakers HELIX Ci3 C100.2FM-S3 MK2
Product Code: 69322
SKU: ac-69322
Out Of Stock
127.45€
We will deliver this product:
DHL
2-4 days
Correos
2-4 days
DPD
2-4 days
FedEx
2-4 days
0-7 eur
GLS
2-4 days
0-7 eur
Payment
Apple Pay
Google Pay
Klarna
.svg){kind=small}
PayPal
SEPA
Description
- Power handling RMS / Max. P 80 / 120 Watts
- Frequency response 100 Hz - 25,000 Hz
- Impedance Z 3 Ω
- Sensitivity SPL 91 dB @ 2.83V / 1m
- 87 dB @ 1W / 1m
- Outer diameter ø 98.0 mm / 3.86”
- Installation diameter ø 89.0 mm / 3.50”
- Installation depth 30.0 mm / 1.18”
- Midrange
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Resonance frequency Fs 137 Hz
- Mechanical Q factor Qms 4.37
- Electrical Q factor Qes 0.78
- Total Q factor Qts 0.66
- Compliance Cms 456 μm/N
- Equivalent air volume Vas 2.1 L
- Force factor B*l 3.2 Tm
- Cone area Sd 57 cm2
- Moving mass Mms 3.0 g
- Mechanical resistance Rms 0.58 kg/s
- Voice coil diameter ø 25 mm
- Voice coil winding height
- 4.8 mm
- Max. linear excursion Xmax +/- 2.0 mm
- Tweeter
- Voice coil diameter ø 20 mm
- Features
- Tweeter Aluminum dome and neodymium magnet
- Midbass
- Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100
- Crossover Integrated, 6 dB highpass
