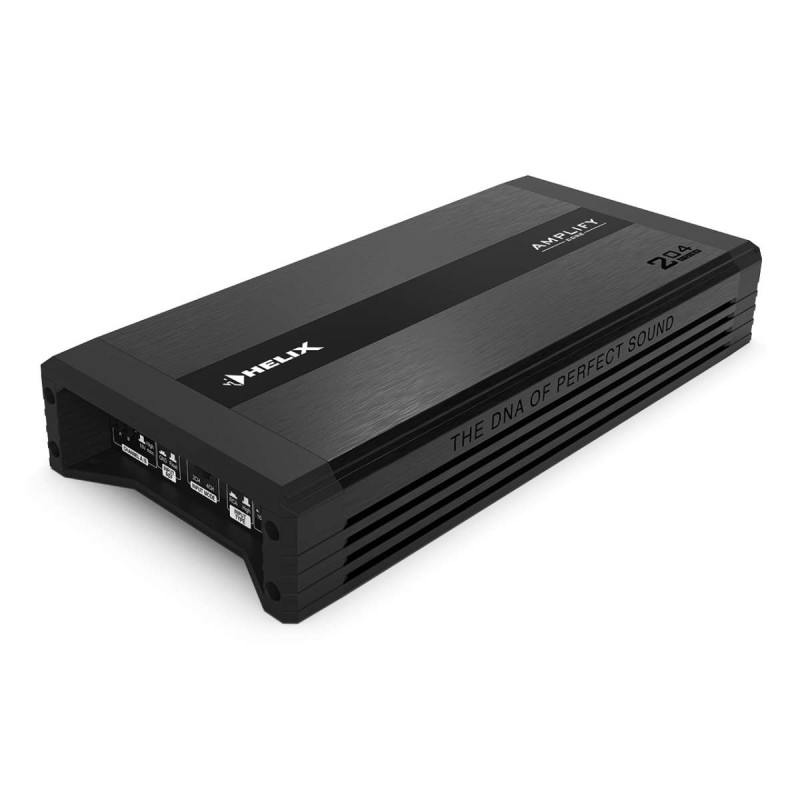

Amplifier HELIX AMPLIFY 204 X-OVER
Product Code: 65774
SKU: ac-65774
Out Of Stock
180.39€
We will deliver this product:
DHL
2-4 days
Correos
2-4 days
DPD
2-4 days
FedEx
2-4 days
0-7 eur
GLS
2-4 days
0-7 eur
Payment
Apple Pay
Google Pay
Klarna
.svg){kind=small}
PayPal
SEPA
Description
- Power RMS ≤ 1% THD+N @ 14.4 V
- - @ 4 Ohms 4 x 100 Watts
- - @ 2 Ohms 4 x 190 Watts
- - bridged @ 4 Ohms 2 x 380 Watts
- Max. output power per channel* Up to 240 Watts RMS @ 2 Ohms
- Amplifier technology Class D
- Inputs 4 x RCA / Cinch
- or
- 4 x Highlevel speaker input
- 1 x Remote In
- Input sensitivity RCA / Cinch: 1 - 8 Volts
- Highlevel: 2 - 16 Volts
- Input impedance RCA / Cinch: 8 kOhms
- Highlevel: 9 - 33 Ohms
- Outputs 4 x Speaker output
- Frequency response 10 Hz - 20.000 Hz
- Highpass 45 Hz - 400 Hz adjustable (can be turned off)
- Lowpass 45 Hz - 400 Hz adjustable (can be turned off)
- Slope high- / lowpass Highpass: 12 dB/Oct.
- Lowpass: 12 dB/Oct.
- Signal-to-noise ratio (A-weighted) 99 dB @ full power
- Distortion (THD @ 1 kHz, 1 W into 4 Ohms) < 0.012%
- Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) < 0.02 %
- Damping factor 70
- Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
- Idle current 1,100 mA
- Fuse 2 x 30 A LP-Mini-fuse (APS)
- Power rating DC 12 V ⎓ 70 A max.
- Operating temperature range -40 °C to +70 °C
- Additional features Active, adjustable crossover, input mode switch, Start-Stop capability, highlevel input with automatic turn-on function, ADEP.3, DirectDSP function
- Dimensions (H x W x D) 40 x 248 x 114 mm /
- 1.58 x 9.76 x 4.49”
