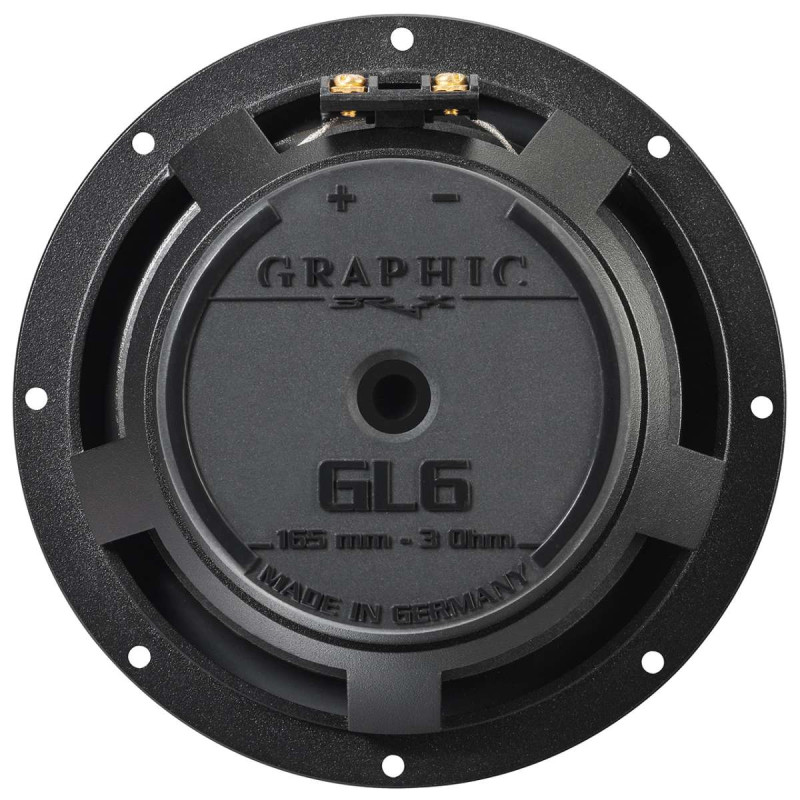

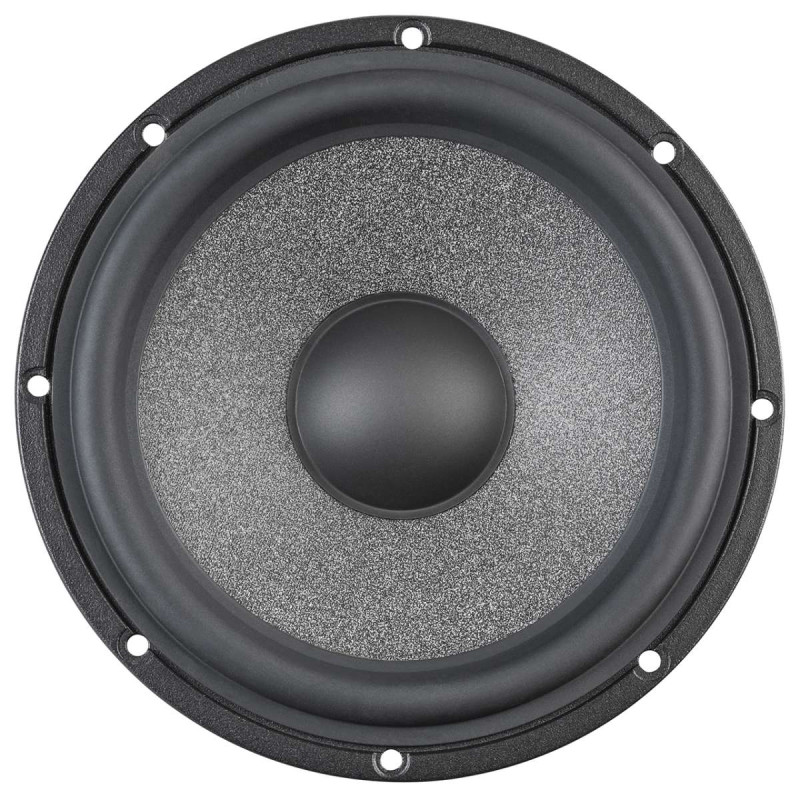

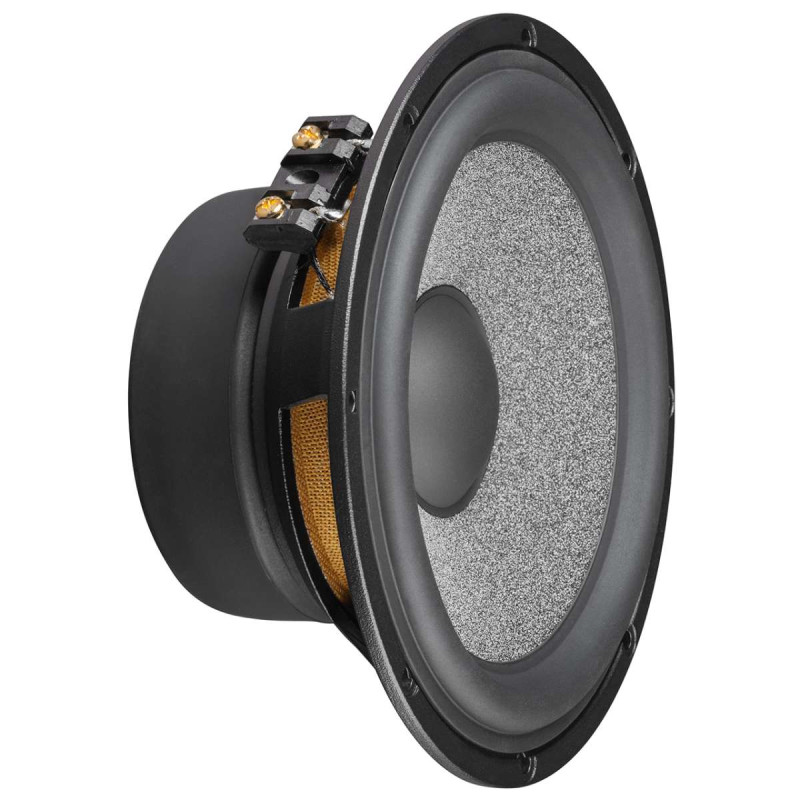

Speakers BRAX GRAPHIC GL 6 MK2
Product Code: 34421
SKU: ac-34421
Out Of Stock
478.43€
We will deliver this product:
DHL
2-4 days
Correos
2-4 days
DPD
2-4 days
FedEx
2-4 days
0-7 eur
GLS
2-4 days
0-7 eur
Payment
Apple Pay
Google Pay
Klarna
.svg){kind=small}
PayPal
SEPA
Description
- Power handling RMS / max. P 100 / 150 Watts
- Impedance Z 3 Ω
- DC resistance Re 3.0 Ω
- Frequency response 40 Hz - 4,000 Hz
- Resonance frequency Fs 52 Hz
- Mechanical Q factor Qms 6.00
- Electrical Q factor Qes 0.57
- Total Q factor Qts 0.52
- Compliance Cms 603 μm/N
- Equivalent air volume Vas 16.3 L
- Force factor B*I 5.2 Tm
- Sensitivity SPL 92 dB @ 2.83V / 1m
- 88 dB @ 1W / 1m
- Cone area Sd 139 cm²
- Moving mass Mms 15.3 g
- Cone material Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
- Mechanical resistance Rms 0.84 kg/s
- Voice coil diameter ø 37 mm
- Voice coil winding height 14 mm
- Max. linear excursion Xmax +/- 4.0 mm
- Outer diameter ø 166 mm / 6.5"
- Installation diameter ø 142 mm / 5.6"
- Installation depth 68.2 mm / 2.7"
